Quick Details

  • Condition: New
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Sefe
  • Model Number: BSB-R-RP1300
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Sanding type: Heavy duty
  • Sanding width: 1300mm
  • Sanding head: Two
  • keywords: belt disc sander

Packaging & Delivery

Packaging Details Stretch Film or Wooden Packing
Delivery Time 15-20 days

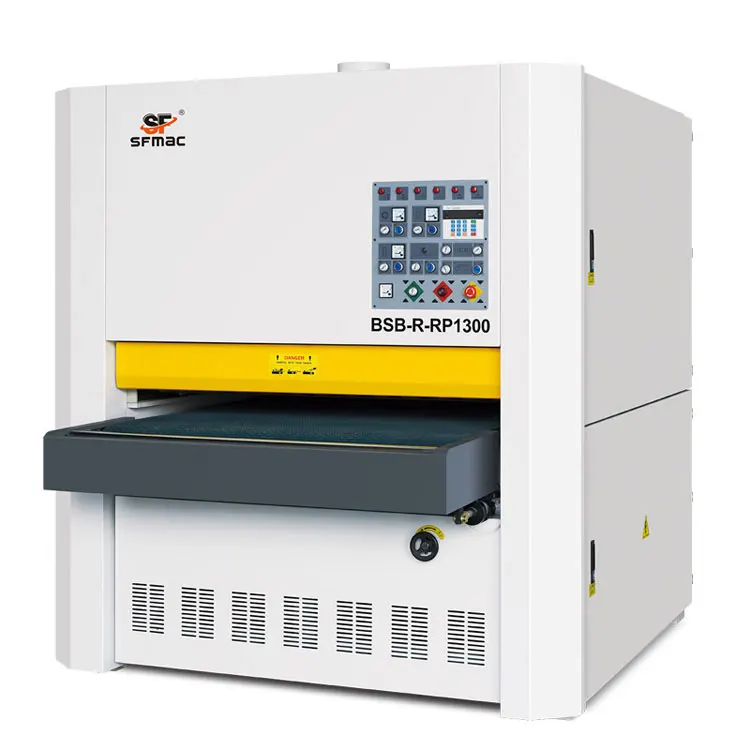

BSB-R-RP1300 Two head calibrating wood floor belt disc sander

Product Description

BSB-R-RP1300  Two head calibrating wood floor belt disc sander



The series characters:

1. suitable for sanding and polishing MDF,Veneer,Marble,Fireproof board,Galvanized metal sheet.

2. has one head,two head,and three head three types.

3. sanding width between 40mm to 1300mm.



Characters:

1. Max. working width is 1300mm

2. Has two heads. Sanding and polishing

3. Feeding belt automatic entering

4. Protector for sanding belt breaking down and loosen

5. When power cuts, transmission bed descending automatically to protect the board safe.

6. Former sand frame is adjustable steel rollers, the fixed thick roller and sanding pad effectively combine

7. Elevating conveyor bed microcomputer controlled, small errors, fast and flexible

8. Light, electricity, gas integrated design and reliable operation

9. Advanced balancing testing fixed thick rolls, steel rolls and pulleys, makes the machine run more smoothly.



Type:R-RP630

Technical specifications

Max.working width

40-1300mm

Working thickness

3-110mm

No.1 sanding belt speed

20m/s

No.2 sanding belt speed

18m/s

Sanding belt size

1330*2200mm

Conveyor   speed

4-30m/min

Total power

75.62kw

Working pressure

0.55MPA

Consumption of compressed air

10000m3/h

Overall dimisions

2300mm*2100mm*2200mm

Net weight

4400kg



Details:

 1. Has two head. sanding and polishing.                           2. Front press roller use  avoiding injuring workers







3. Better strong roller                                                            4. Board digital thickness display





5. Photoelectric and double contact cylinder control        6. Emergency button for safety, it can stop at once

vibrating of abrasive belt along center.







 7. with brush for better cleaning.                                          8. Strong and better friction force conveyor belt.



9. with Pneumatic pad for better polishing







Additional options.

10. Plc control (optional)                                                    11. Automatic air blower on first belt and second belt (optional)





12. Vacuum table (optional)

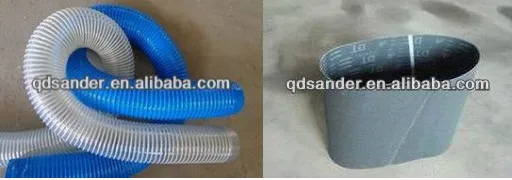

Standard spart parts



Optional spart parts



Packaging & Shipping





Company Information

Qingdao Sefe Trading Co., Ltd. is a subsidiary of Sefe Woodworking Machine Manufacturing Company.

We are specialized in manufacturing woodworking machines for many years in Qingdao China.



with over 30 years of experiences in woodworking machine and metalworking fields, we have developed various series of woodworking machines, such as sander machine, sliding table saw,hot press,Hydraulic clamp carrier and so on. The SF brand sander is the famous brand in China Market,which includs wide belt sander, lacquer sander, water sander, double side sander and brush sander.



In order to supply high quality product and excellent services, we are continually improving our products with the latest technologies according to the market prevailing requirements. In the past years, all our products has got CE and ISO certificate.





Production meeting everyday morning.





Production corner



Exhibiton





                        CE Certificate                                                     ISO Certificate



Our Services



1. Give easy broken spare parts with machine.

2. Our technician will tell you how to deal with small problems.

3. If request, our technician can go to your place to solve problems.





FAQ



1. The machine has been setted before leaving factory.

2. We will send some easy broken spare parts with the machine.

3. The min. order is 1 pc.

4.We have our own factory. If you want to invest or sell our machines in your market , we expect to cooperate with you.
