Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Sefe
  • Model Number: SDR-630
  • Power Source: Electricity
  • Variable Speed: Yes
  • Rated Voltage: 380v
  • Rated Input Power: 33.75kw
  • Frequency: 50/60HZ
  • No-Load Speed: 10000rpm
  • Sand Pad Size: 650*1920mm
  • Application: Sanding
  • Weight: 2500kg
  • Type: for double
  • Sanding width: 630mm
  • Sanding Pad: with
  • keywords: woodworking sanding machine

Packaging & Delivery

Packaging Details Film packing or wooden packing
Delivery Time 15-20days

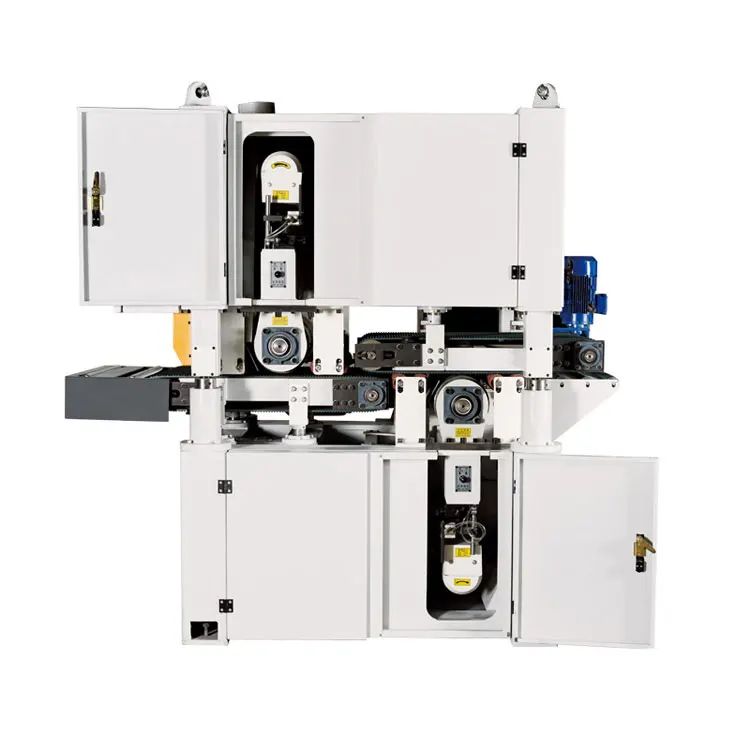

SDR-630 Low price double plywood calibrating woodworking sanding machine

Product Description



SDR-630 Low price double plywood calibrating sanding machine woodwork machine

The series characters:

1.for sanding and polishing all kinds of Paint.

2. has one head,one head with polishing pad, two heads and four heads ,four types.

3. sanding width between 30mm to 630mm.





Type

SDR-1000

     SFR-R1000D

SDR-630

SFR-R630D

Working width

30-1000mm

30-1000mm

20-630mm

30-630mm

Working thickness

2.5-110mm

2.5-110mm

4-100mm

2.5-110mm

Working length

≥500mm

≥500mm

≥500mm

≥500mm

NO.1# abrasive belt speed

adjust 20m/s

adjust 2-12m/s

adjust 20m/s

adjust 2-12m/s

NO.2# abrasive belt speed



adjust 2-12m/s



adjust 2-12m/s

Feeding speed

4-16m/min

  4-16m/min

2-16m/min

4-16m/min

Size of abrasive belt(WxP)

1020x1920mm

1020x1920mm

650x1920mm

650x1920mm

Total motor power

15.23kw

17.23kw

33.75kw

13.23kw

Main motor

15kw

7.5kw,7.5kw

15kw,11kw

5.5kw,5.5kw

Working air pressure

0.55Mpa

0.55Mpa

0.55Mpa

0.55Mpa

Consumption of compressed air

0.25m3/min

0.3m3/min

0.2m3/min

0.3m3/min

Volume of sucked air

5500m3/h

5500m3/h

4000m3/h

5000m3/h

Speed of sucked air

25-30m/s

25-30m/s

25-30m/s

25-30m/s

Overall dimension(lxWxh)

1900x1800x2100mm

1900x1800x2100mm

1900x1900x2300mm

1800x1400x2000mm

Net weight

2000kg

2500kg

2500kg

2000kg





Standard spart parts

Optional spart parts.

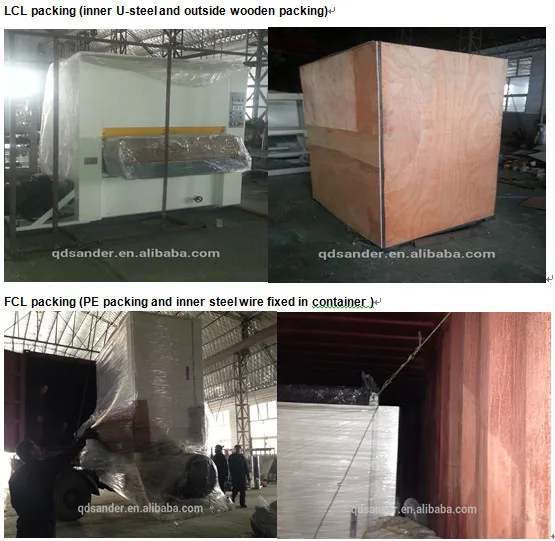

Packaging & Shipping





Company Information

Qingdao Sefe Trading Co., Ltd. is a subsidiary of Sefe Woodworking Machine Manufacturing Company.

We are specialized in manufacturing woodworking machines for many years in Qingdao China.



with over 30 years of experiences in woodworking machine and metalworking fields, we have developed various series of woodworking machines, such as sander machine, sliding table saw,hot press,Hydraulic clamp carrier and so on. The SF brand sander is the famous brand in China Market,which includs wide belt sander, lacquer sander, water sander, double side sander and brush sander.



In order to supply high quality product and excellent services, we are continually improving our products with the latest technologies according to the market prevailing requirements. In the past years, all our products has got CE and ISO certificate.









Production corner



Exhibiton





                        CE Certificate                                                     ISO Certificate



Our Services



1. Give easy broken spare parts with machine.

2. Our technician will tell you how to deal with small problems.

3. If request, our technician can go to your place to solve problems.





FAQ



1. The machine has been setted before leaving factory.

2. We will send some easy broken spare parts with the machine.

3. The min. order is 1 pc.

4.We have our own factory. If you want to invest or sell our machines in your market , we expect to cooperate with you.
